DIY Cable

Overview

danger

The DIY cable is intended for advanced users only. Incorrect wiring may damage your Stellar or Xbox.

caution

Both GND and DATA lines must be connected. 5V is not supplied through the DIY cable. Additionally, DIY setups are not current-limited—you are responsible for ensuring the connected LEDs do not exceed safe current limits for your installation.

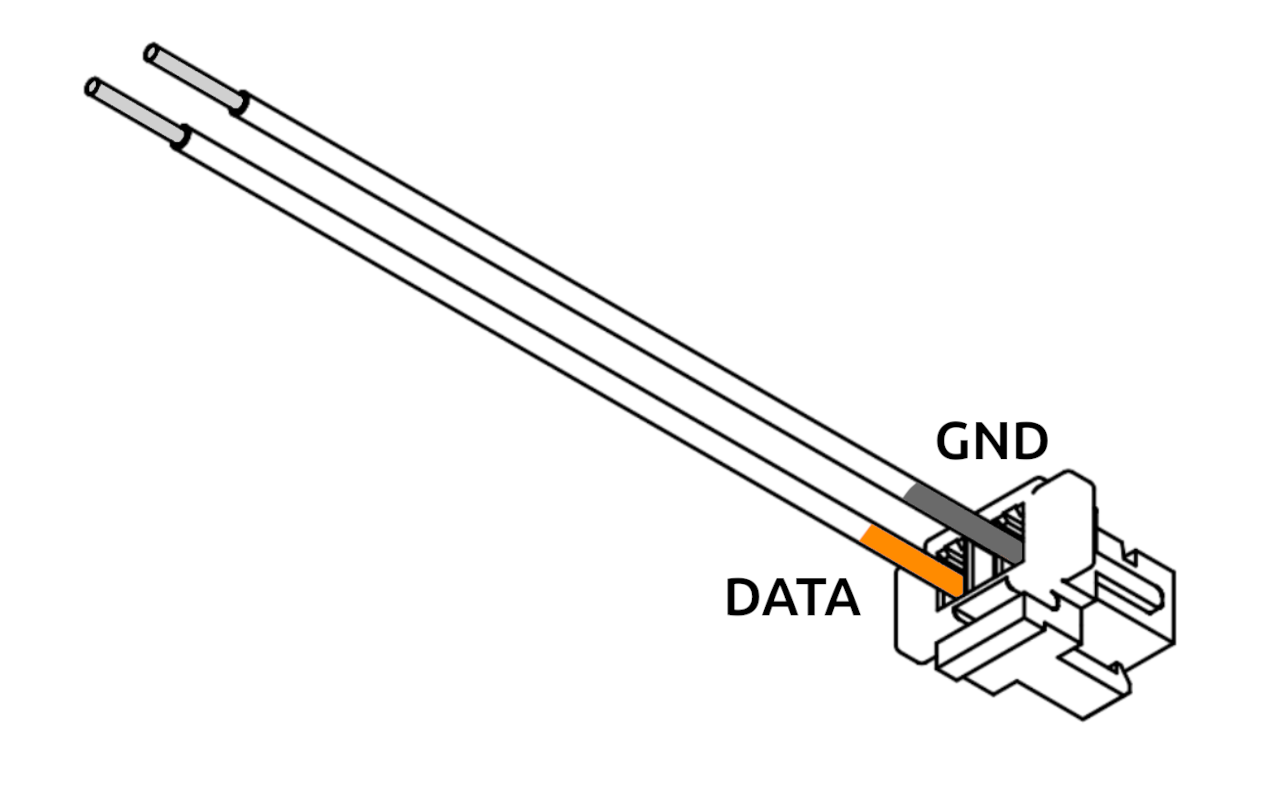

Wiring Breakout

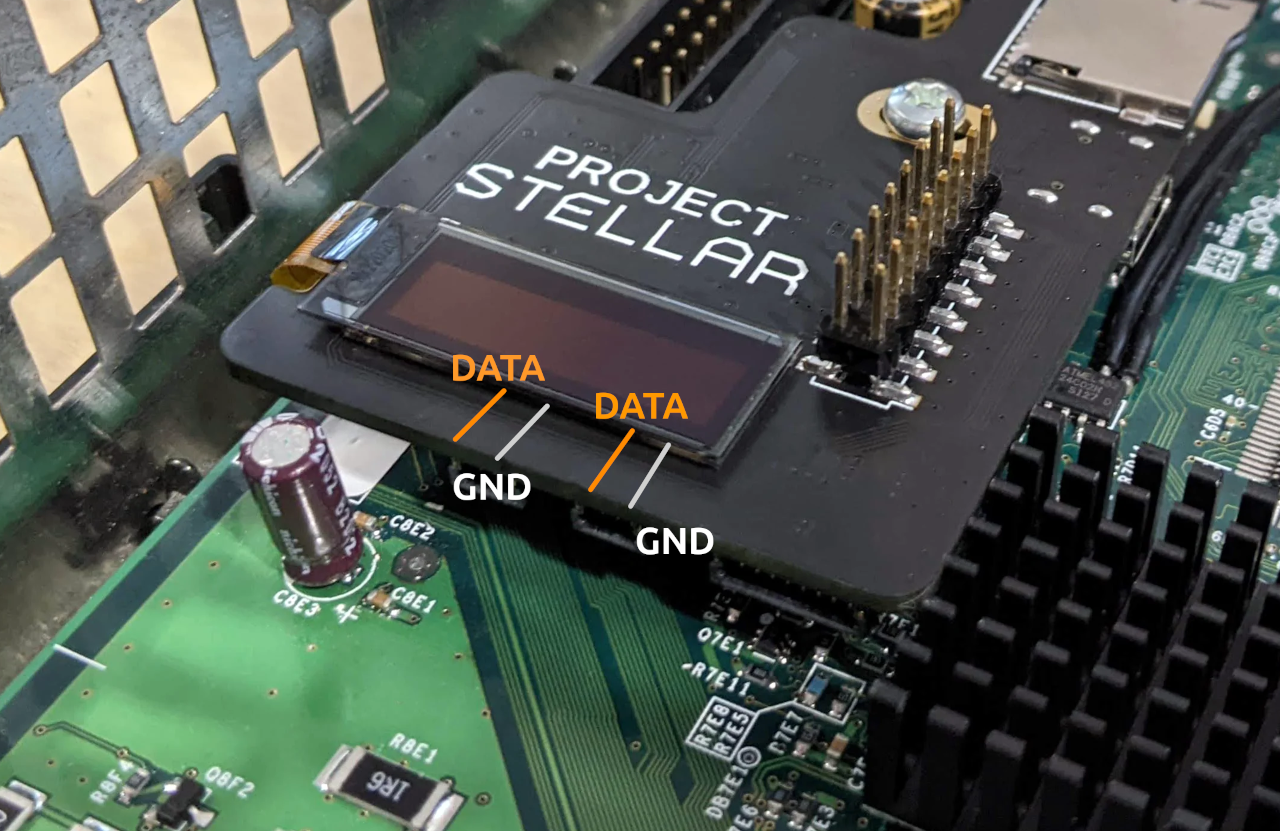

Wiring Overview

Compatibility

Most 5V WS2812B LED strips are supported. Support for additional types may be added in future updates.

Verified

BTF-LIGHTING WS2812B IC RGB 5050SMD
